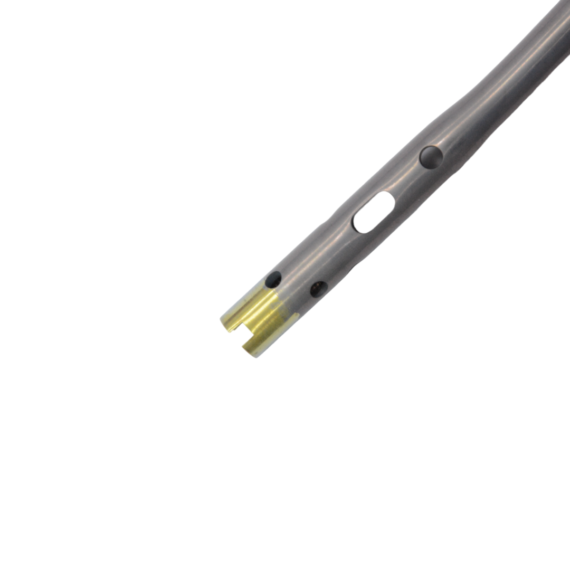

Multihole Tibia Interlocking Nail

Material:

  • Titanium Grade 5 Eli

Sizes:

  • 5 different diameter ranging from 8mm o 12mm
  • 9 different lengths for each diameter ranging from 255mm to 375mm by 15 increments

Get Product Brochure

Please enable JavaScript in your browser to complete this form.
Subscribe to Our Newsletters

Description

Design Features of Multihole Tibial Interlocking Nail

  1. Universal Use:
    • Ambidextrous Design: The nail is designed for use on both left and right tibia, enhancing surgical flexibility.
  2. Anatomical Bend:
    • Ease of Insertion: The new anatomical bend allows for smoother insertion, conforming to the natural curvature of the tibia, which facilitates positioning during surgery.
  3. Cannulated Design:
    • Guided Insertion: The cannulated structure permits easy insertion over a guide wire, promoting precision and reducing the risk of misalignment.

Locking Screws

  1. Proximal Locking Screws:
    • Versatile Fixation: Five locking screws strategically placed to cover a variety of fracture patterns:
      • Two Oblique Screws: Positioned at 45 degrees, crossing in two different planes to enhance stability.
      • One Additional Oblique Locking Screw: Provides further stability in challenging fracture configurations.
      • Two Horizontal Screws: Offer mediolateral locking options, including one dynamic hole to accommodate physiological movement.
  2. Distal Locking Screws:
    • Enhanced Stability:
      • Two Anteroposterior Locking Screws: For added fixation.
      • Two Mediolateral Locking Screws: To secure the nail against lateral forces.
  3. Self-Tapping Locking Screws:
    • Secure Engagement: Self-tapping design ensures robust engagement with the bone, minimizing the risk of screw loosening.
  4. Optimized Thread Design:
    • Closer Threading: Threads located closer to the screw head provide improved bone purchase in the near cortex, enhancing overall stability and fixation strength.
