Anterior Cervical Plate

Material:

  • Titanium Grade 5 Eli

Connections:

  • Three Diameters: Screws available in diameters of 3.7 mm, 4 mm, and 4.3 mm, with lengths of 14, 16, 18, 20, and 22 mm, providing options for both osteoporotic bone and achieving unicortical or bicortical fixation.

Sizes:

    • level one: ranges from 24mm to 32mm
    • level two: ranges from 36mm to 56mm
    • level three: ranges from 60mm to 78mm
    • level four: ranges from 86mm to 106mm
Category Tag

Get Product Brochure

Please enable JavaScript in your browser to complete this form.
Subscribe to Our Newsletters

Description

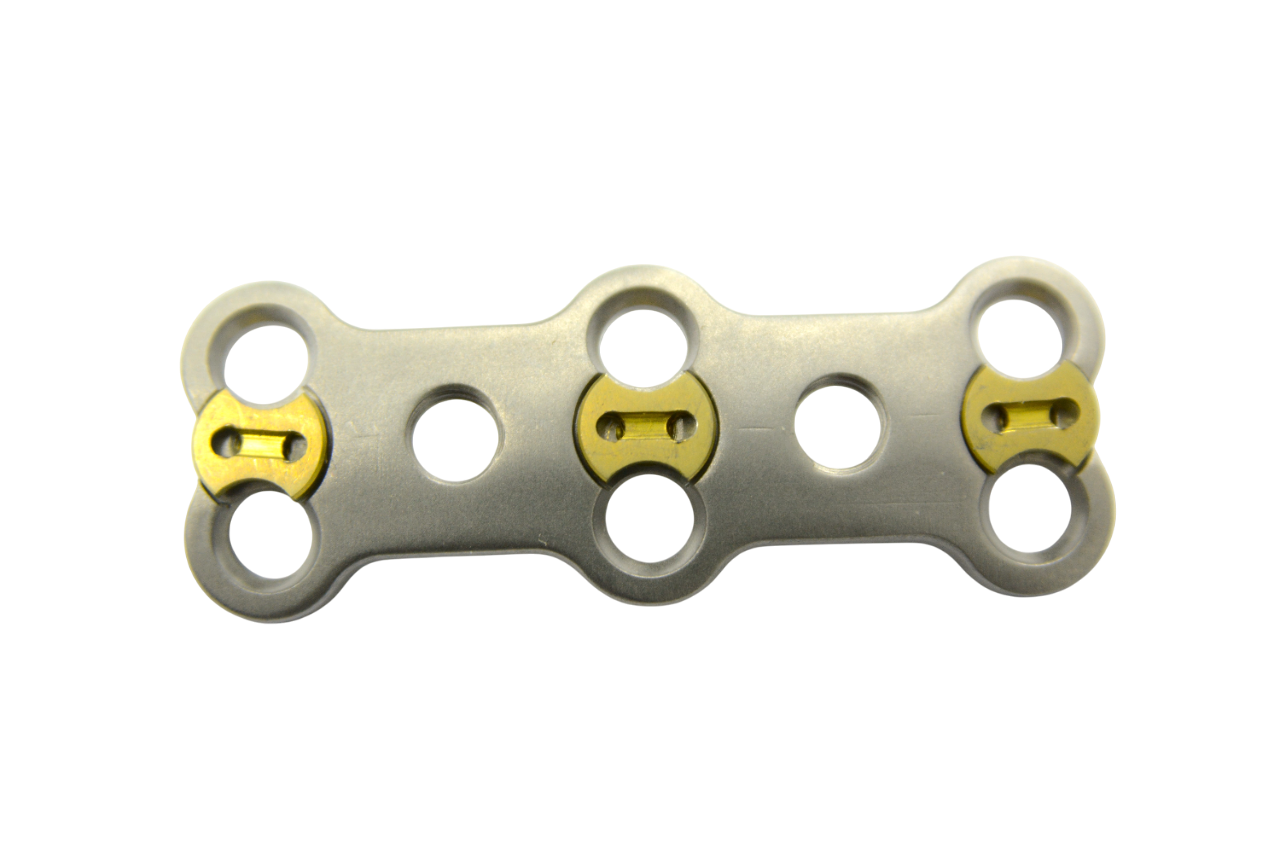

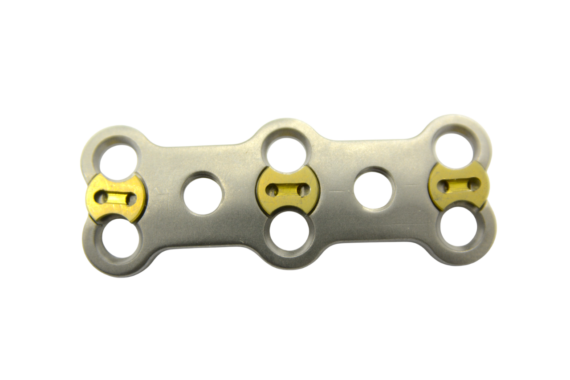

Anterior Cervical Plate System

Overview: The anterior cervical plate system provides semi-rigid fixation for anterior interbody fusion in the cervical spine. Its design is optimized for stability and adaptability, catering to various surgical needs.

Design Features

  1. Low Profile Plate:
    • Minimized Discomfort: The low-profile design reduces soft tissue irritation and enhances patient comfort.
  2. Curved Profile:
    • Anatomical Fit: Curved to match the anterior surface of the vertebral bodies, ensuring better contact and stability.
  3. Variable Screw Angulation:
    • Locking Capabilities: Allows for flexible screw angulation with secure locking, accommodating various surgical approaches.
  4. Wide Range of Plates and Screws:
    • Surgeon Flexibility: A diverse selection of plates and screws caters to different surgical scenarios and preferences.
  5. Screw Options:
    • Three Diameters: Screws available in diameters of 3.7 mm, 4 mm, and 4.3 mm, with lengths of 14, 16, 18, 20, and 22 mm, providing options for both osteoporotic bone and achieving unicortical or bicortical fixation.
  6. Self-Tapping Screws:
    • Versatile Placement: Self-tapping screws can be inserted at various angles, enhancing placement flexibility and stability.
  7. Self-Locking Mechanism:
    • Secure Fixation: The self-locking feature ensures reliable fixation during the healing process.
